LE-UWB™ Evaluation Kits
Benchmark LE-UWB™ wireless performance against your application - data rate, latency, power, range with hardware that ships ready to run.
Development Hardware
SPARK evaluation kits give engineering teams a complete platform to test LE-UWB™ performance, prototype real applications, and validate design assumptions before silicon integration.
Not sure which kit?

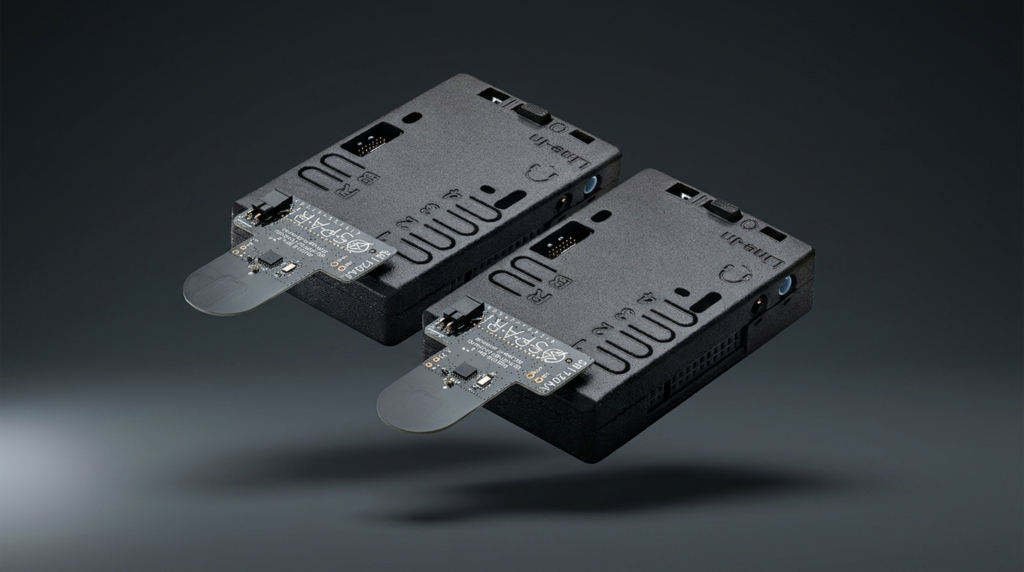

Choose the SR1120 EVK
Designed to evaluate Audio, Gaming, Industrial, and Healthcare Datacom applications—as well as any use case requiring deterministic high-performance LE-UWB connectivity.

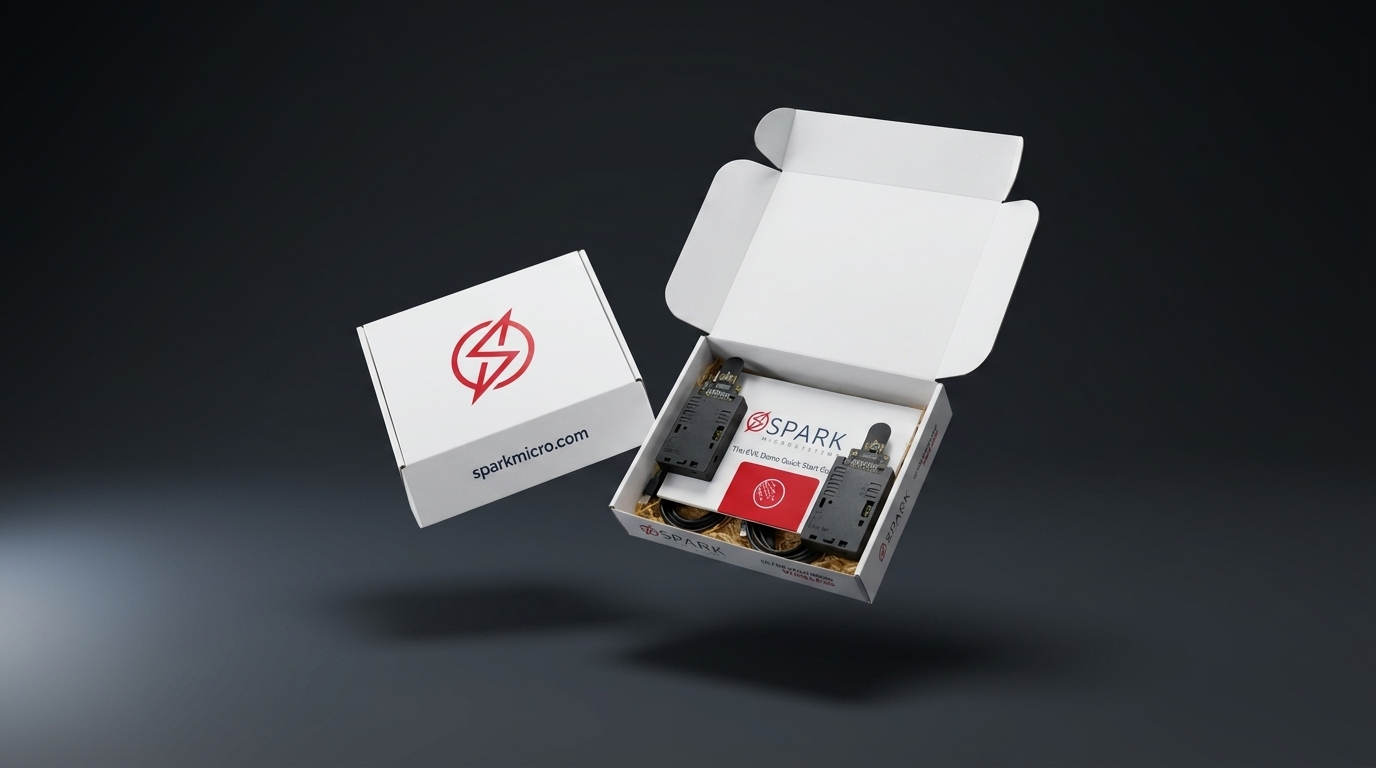

Presence Detection Kit
Designed to evaluate Asset and Individual Tracking, Immersive Experience, and Access Control applications—as well as any use case requiring ultra-low-power presence detection and precise Time-of-Flight ranging.
Not sure which kit?
Metric
SR1120 EVK
Presence Detection Kit
Best for
Default choice for new LE-UWB™ designs. Highest data rate, full SDK customization.
Applications like Asset and Individual Tracking, Immersive Experience, and Access Control applications.
Silicon
SR1120 · 6.2–9.5 GHz · up to 40.96 MHz symbol rate · 25 µs airtime latency
SR1120 · 6.2–9.5 GHz · up to 40.96 MHz symbol rate · 25 µs airtime latency
MCU and hardware
STM32U5 Cortex-M33 · 160 MHz · 4 MB flash · MAX98091 audio codec · dual-antenna · USB-C · Li-Ion battery
STM32G0 Cortex-M0+ · RF module · Accelerometer · USB · expansion header · Tag version available
Software
SPARK SDK + Datalink : full source access, fully customizable. Requires application-level development.
Standalone GUI
SDK access
Separate free download from sparkmicro.com. Request before hardware arrives
Presence Detection Stack available from sparkmicro.com or by contacting our sales team
Demo modes
Datacom GUI. Real-time radio config, network stats, signal visualization, bidirectional/unidirectional data transfer.
Beaconing and ToF modes
Audio demos
Stereo line-in, microphone, headphone output · 8–96 kHz · 24-bit · same path as headset reference design
N/A
Inside SPARK Evaluation Kits
Working LE-UWB™ link out of the box.
No external components, no manual radio configuration. Power on, connect, run.
Real-time link diagnostics.
Monitor data rate, packet delivery ratio, signal strength, and latency as you change conditions.
Direct technical support.
Access to SPARK applications engineers during evaluation.
USB-C connectivity built in.
Power, charging, and data over a single cable. No additional power supply required.
SDK access via sparkmicro.com.
The SPARK SDK includes source code, application examples, and documentation as a separate free download.
